Walraven Quick Clamp Pipe Clip

In stock
Only %1 left
SKU
QUICK-CLAMP-PIPE-CLIP-W
Submit Enquiry
Information
Description

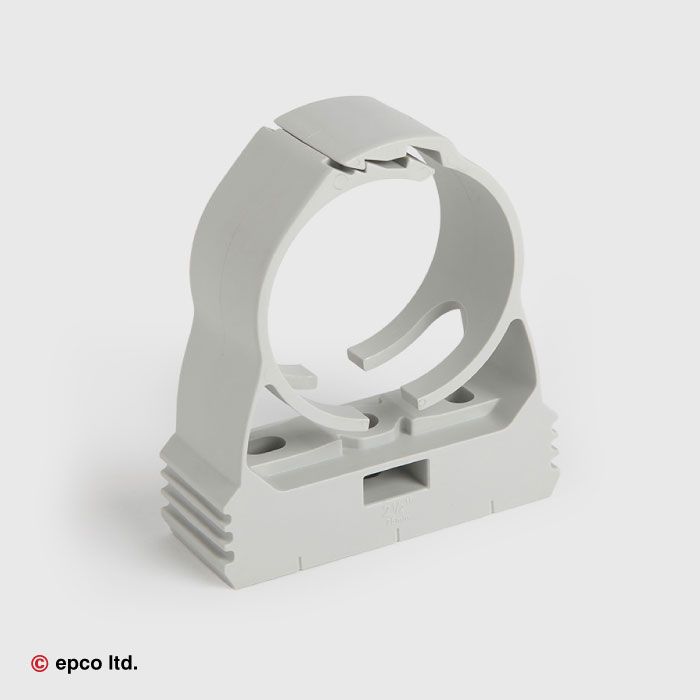

Quick Clamp Pipe Clips are used to bracket a pipe system to surfaces such as a ceiling or wall. The clip is designed from one part and fixes quickly and easily by use of a built-in clamp.
D o.d. B H h
3/8” or 16mm 16-20 29 40 26
1/2” or 20mm 20-23 29 44 27
3/4” or 25mm 24 -28 40 50 31
1” or 32mm 32-35 43 57 34
1 1/4” or 40mm 40-44 52 70 42
1 1/2” or 50mm 48-55 63 81 47
2” or 63mm 59-65 74 94 55
D o.d. d1 d2 h2
2½" or 75mm 71-76 10.5 13 x 8.3 28
3" or 90mm 88-93 13 13 x 8.3 32
4" or 110mm 109-115 13 15 x 10.5 35

The Illustration and Specifications provided are not guaranteed and may vary depending on Brand or Manufacturer.
